MXS Strada
The compact TFT dash for road use
A wide range of data sources
MXS Strada is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world.
MXS Strada is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS09 Module.
MXS Strada is available in two versions:
CAN output
With the CAN Output you can send messages directly
to an existing CAN network in order to improve
the range of vehicle control possibilities.

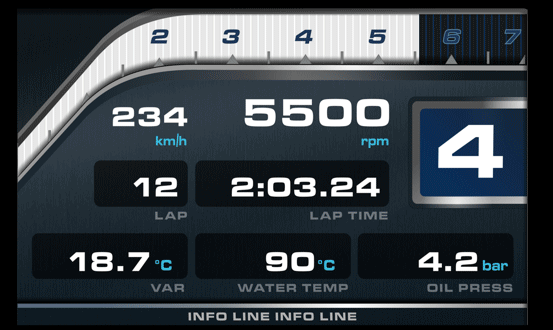

Watch your data in pre-configured pages
MXS Strada shows, together with RPM scale, all the
data you need, like speed, water temperature
and oil pressure, laptimes and much more...
You can choose the custom pages you wish
among a wide library of page styles,
defining which data to be shown,
their end of scale and measure units.
Swapping between pages is quite
easy using the pushbuttons.

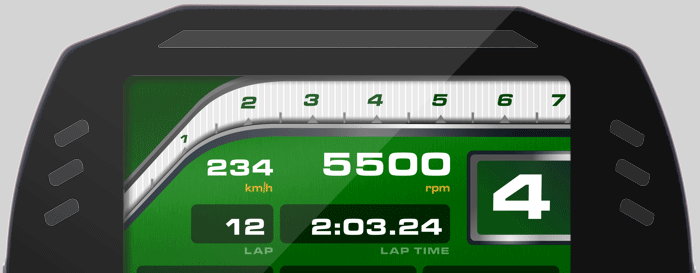

High contrast TFT display
MXS Strada features a high contrast
TFT display: its visual quality is always
optimal as its ambient light sensor keeps
the backlight at the best brightness levels.

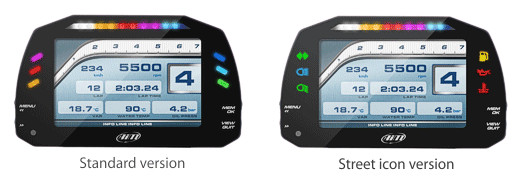

The dash is of course available also
in the "Street Icons" version
(fuel, oil, water temp., etc.).
Flexible alarms
The ten multicolored RGB shift lights can be customized as you like, defining the RPM threshold for each single gear.
The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information.
You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency.
It is also possible to configure an accompanying text message, and set the alarm priorities.
Two digital outputs
MXS Strada features a LOW SIDE type
(switch to ground) digital output configurable
in order to be activated/deactivated depending
on the value of the analog/digital inputs
or on impulses coming from the ECU.
This permits to automatically run external
systems, i.e. to switch on/off additional
lights, to activate/de-activate a cooling
fan or circulation pumps, etc. when a certain
event happens.
A modular system
Using the built-in CAN bus you can add expansion modules to visualize additional info:
GPS09 Module
Thanks to GPS09 Module (included in the kit) and its RaceStudio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
GPS09 Module
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
Channel Expansion

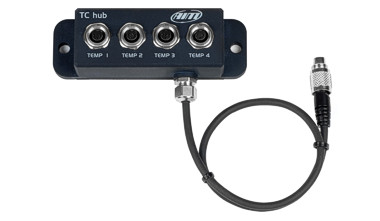

TC Hub
It adds 4 K thermocouples.
TC Hub
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
LCU-One CAN
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
SmartyCam HD Rev.2

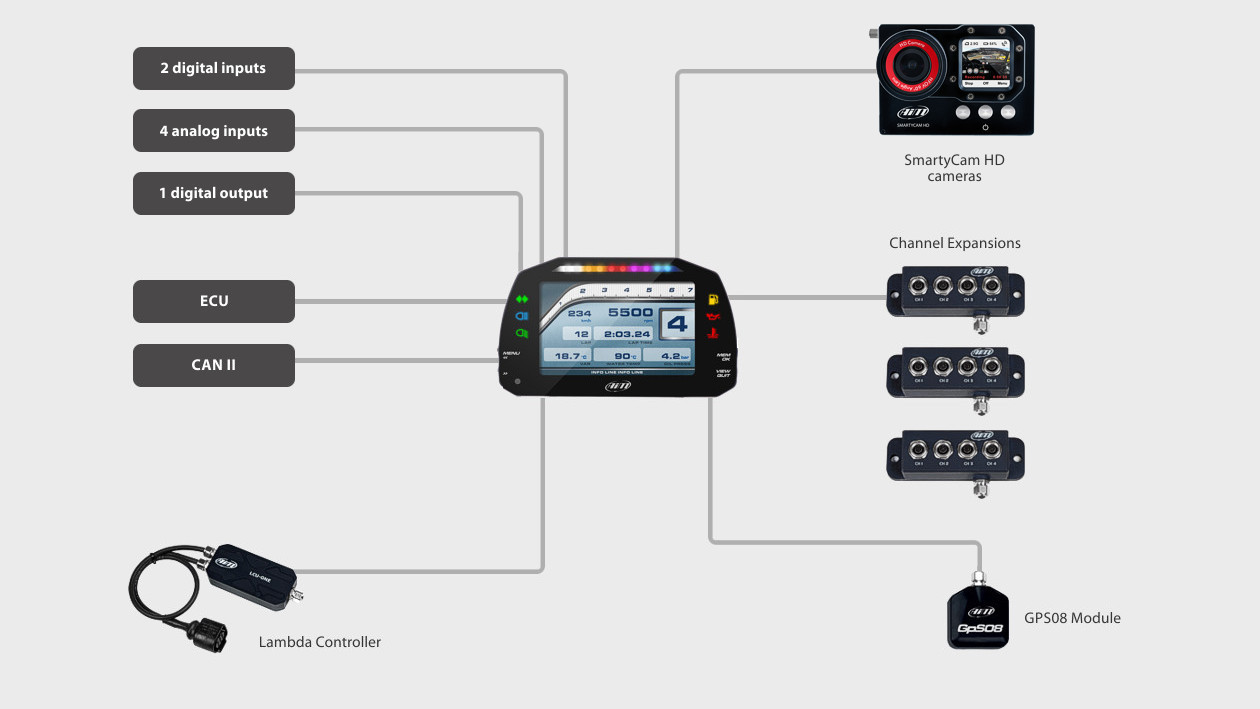

Connection example
These are only some of the items that can be added to our MXS Strada for incrementing the performance
and the data acquired:

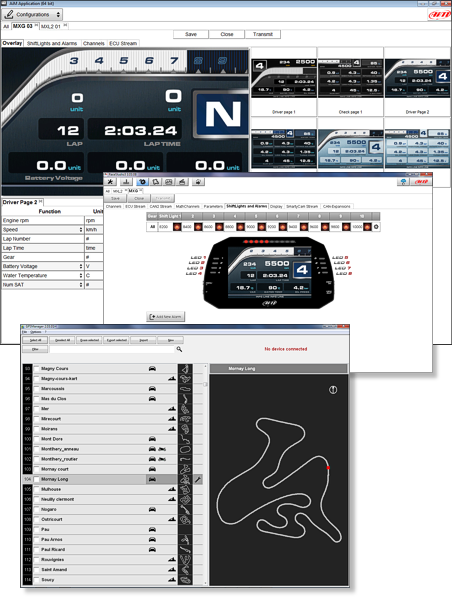

RaceStudio 3 configuration
MXS Strada is to be configured via RaceStudio 3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.
AiM LearnFast E-training Series
Check out how to use RaceStudio 3 Configuration: Part 1 - Part 2
