TECHNICAL SPECIFICATIONS
 GPS
Integrated
 Inertial platform
Included
 Wi-Fi connection
Included
 Display resolution
268x128 pixel
 Backlight
8 configurable RGB colors
 Ambient light sensor
Included
 Multifunction LEDs
5 RGB LEDs*
 Alarms LEDs
2 configurable
 RPM sampling frequency
50 Hz
 Body
Glass fiber reinforced Nylon
 Pushbuttons
Metallic
 Battery
Rechargeable Lithium
 Memory
4 GB

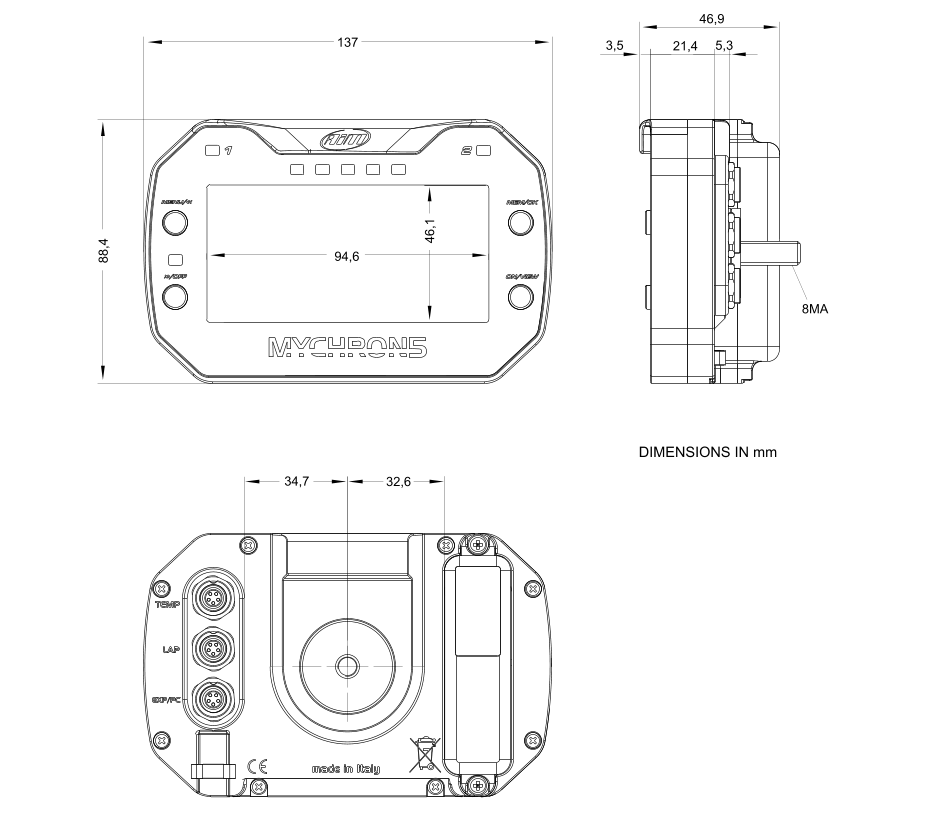

 Dimensions
137 x 88 x 30 mm
 Weight
390 g
 Waterproof
IP67
* Configurable as shift lights or RPM/laptimes alert
IN THE BOX
MyChron5, battery charger with cable, RPM cable, temperature sensor. Optic/magnetic receiver optional.
