Technical specifications

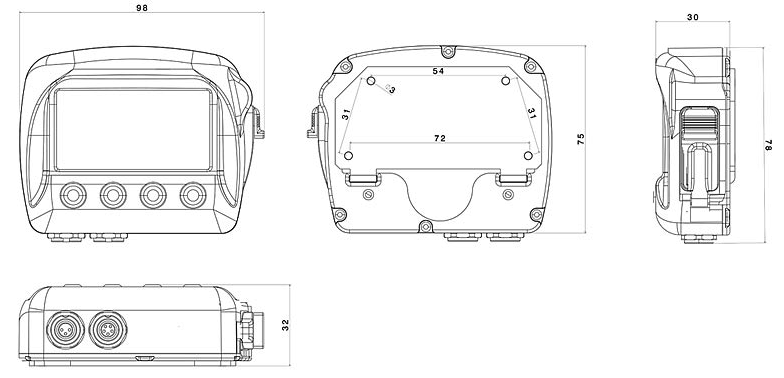

Disegno tecnico SoloDL
Solo SoloDL
Speed By GPS By GPS or through ECU Connection
Time measurement Over GPS
- measuring accuracy 1/100 sec.
- Up to 5 split times
- Separate settable Start and Finish line
- Predictive Lap time
Acceleration
Internal Triaxial Acceleration sensor
Sum scan rate GPS data and triaxial accelerometer at 10 Hz Max 5000 Hz depending upon ECU data
stream specification
Connector 1x socket (binder) 712, 3-pins
1x Mini-USB
1x socket (binder) 712, 5-pins
1x socket (binder) 712, 7-pins
1x Mini-USB
Data storage
Non-volatile internal 16 MB memory
Power supply Internal rechargeable Lithium-battery
External 8-16 V over power supply network
Internal rechargeable Lithium-battery
External 8-16 V over power supply network
When connected to OBDII, SoloDL gets power from OBDII
Updates
Software and Firmware Updates free over the Internet
Dimensions
98 x 78 x 30 mm
Weight
240 g
Protection class
IP67

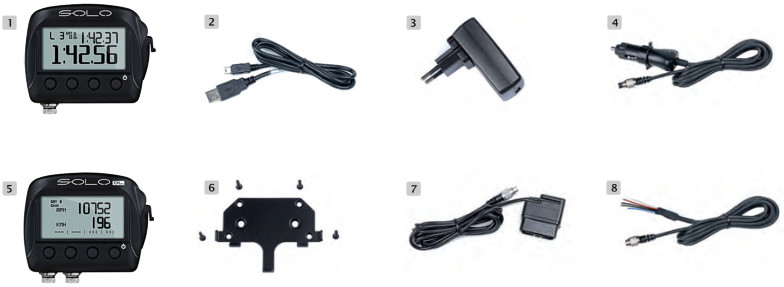

In the box
Solo
Solo (1)
Solo USB cable (2)
USB/AC power adapter (3)
Solo power cable with 2m
wired car lighter socket (4)
Mounting bracket with screws (6)
Software installation CD
SoloDL
Kit for stock cars with stock ECUs
OBDII (K Line/CAN)
SoloDL (5)
Solo USB cable (2)
USB/AC power adapter (3)
2m OBDII/power cable (7)
Mounting bracket with screws (6)
Software installation CD
SoloDL
Kit for racing cars with aftermarket
ECUs(CAN/RS232)
SoloDL (5)
Solo USB cable (2)
USB/AC power adapter (3)
4m CAN/RS232 ECU harness (8)
Mounting bracket with screws (6)
Software installation CD
