TECHNICAL SPECIFICATIONS
YARARA

YARARA TECH SPECS
 Compatible ATV models
ATV Yamaha YFZ450R
 Additional inputs
Two 0-5V analog inputs sampled @ 1,000 Hz each
 Additional outputs
Second injector driver for high impedance saturated injectors (12 Ohm)
One low side driver (1A)
 CAN connectors
2 CAN bus, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash ecc.)
 Power consumption
150 mA

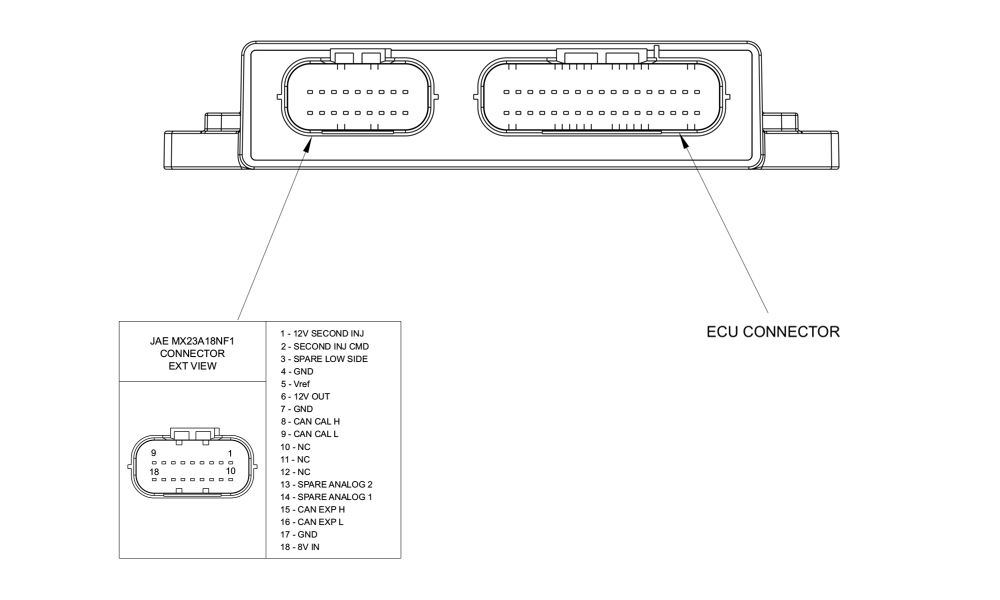

 Connectors
n.1 JAE male 18 pin MX23A18NF1 Connector
n.1 34 pin male Connector
 Body
PA6 + 30% glass fiber

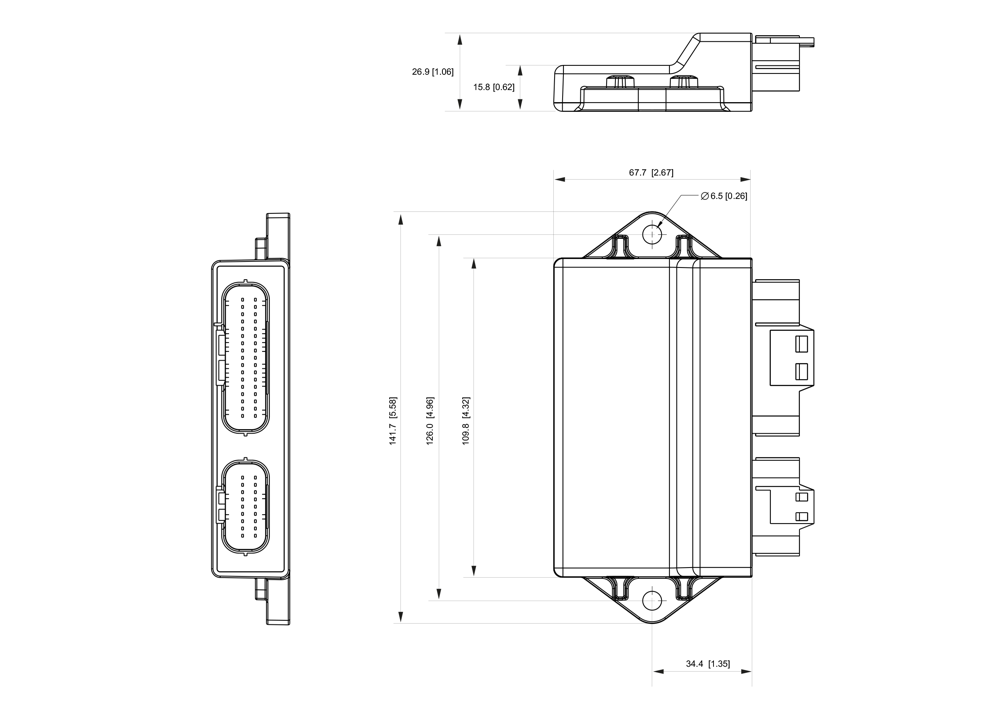

 Dimensions
141.5x84.3x26.9 mm
 Waterproof
IP67
 Weight
370 g

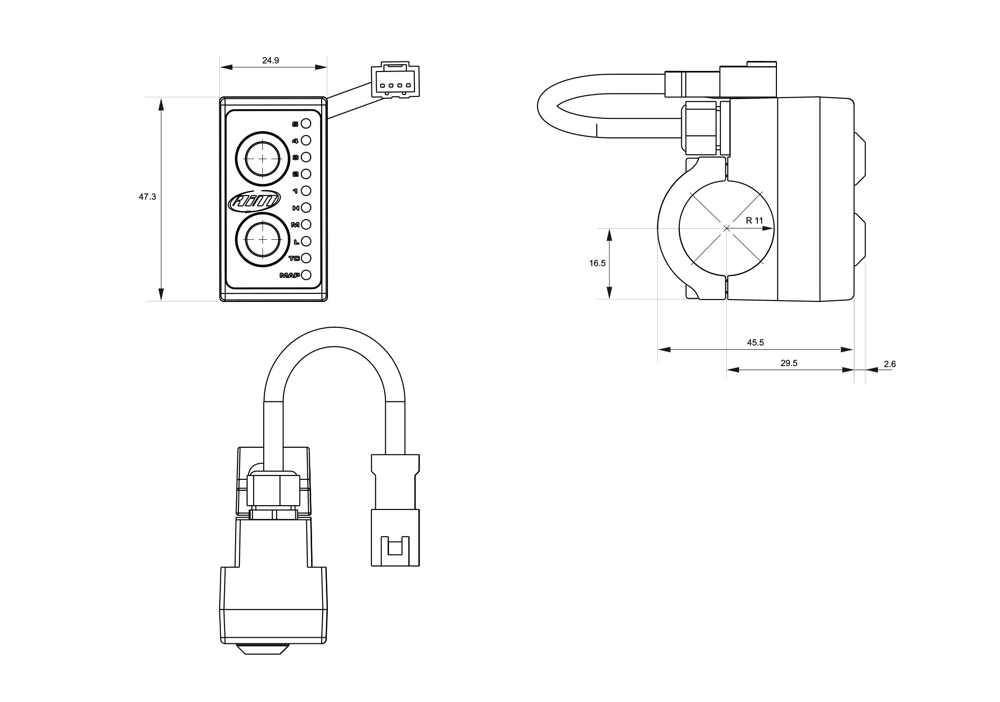

HANDLEBAR SWITCH

HANDLEBAR SWITCH TECH SPECS
JST waterproof connector for CAN Bus communication

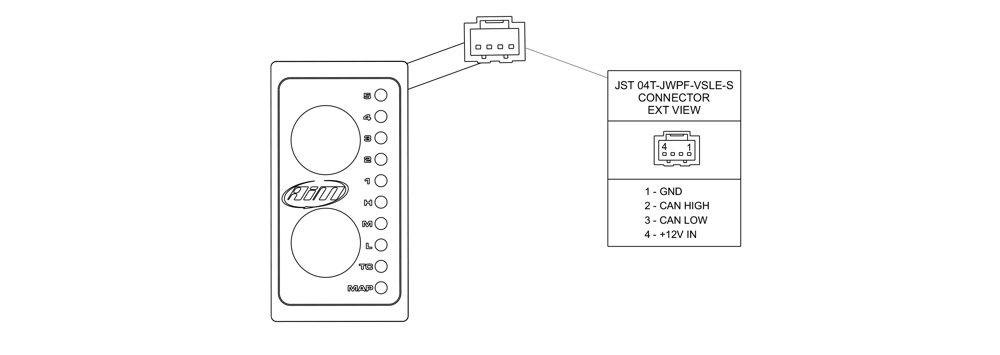

 Connector
n.1 JST 04T-JWPF-VSLE-S Connector
 Body
PA6 + 30% glass fiber
 Dimensions
47.3x24.9x48.1 mm
 Waterproof
IP67
 Weight
70 g

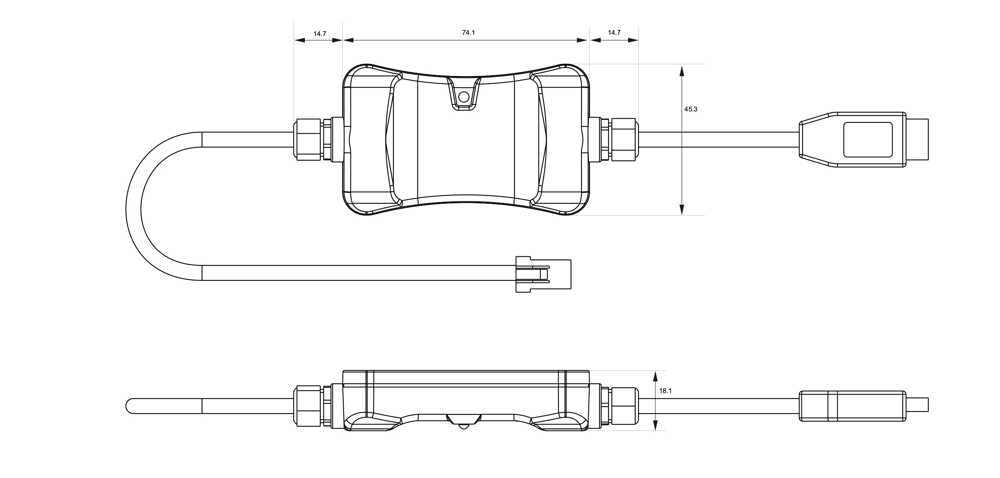

UC BRIDGE

UC BRIDGE TECH SPECS

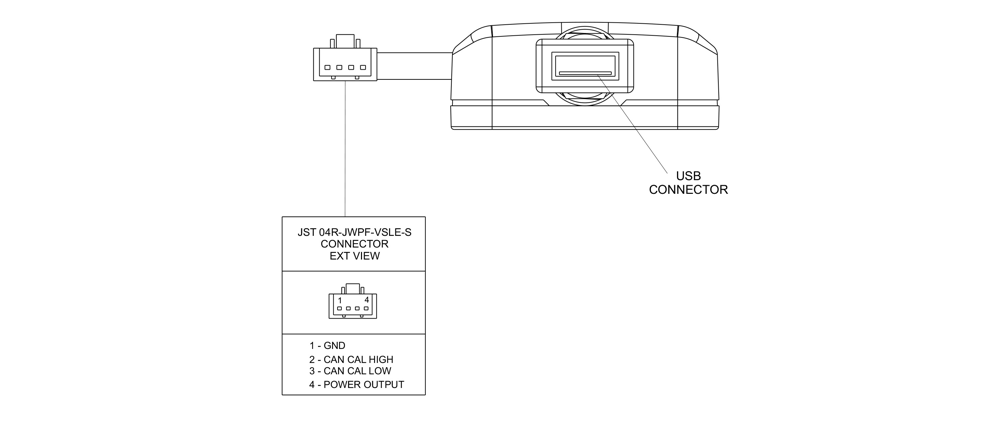

 Connectors
n.1 USB connection for PC
n.1 JST 04R-JWPF-VSLE-S waterproof Connector for CAN Bus communication
 Body
PA6 + 30% glass fiber
 Dimensions
103.5x45.3x18.1 mm
 Waterproof
IP65
 Weight
80 g
