TECHNICAL SPECIFICATIONS
 Display
5” TFT
 Resolution
800x480 pixels
 Contrast
600:1
 Brightness
700cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Status information LEDs
6
 Shift lights LEDs
10
 CAN connections
2
 ECU connections
Yes
 External modules
GPS Module, Channel Expansion, Lambda Controller, SmartyCam HD
 Wi-Fi connection
Yes
 Internal memory
4 GB
 Body
Anodized Aluminum
 Connectors
1 JAE connector + 2 Binder connectors
 Power consumption
400 mA

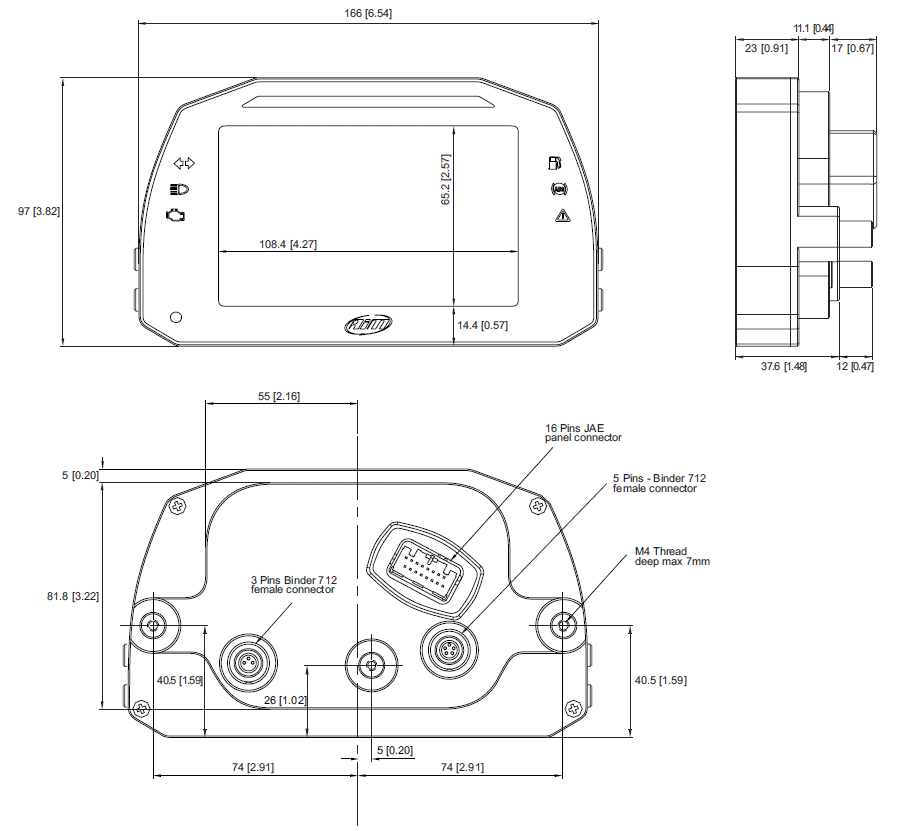

 Dimensions
166x97x23 mm
 Weight
530 g
 Waterproof
IP65

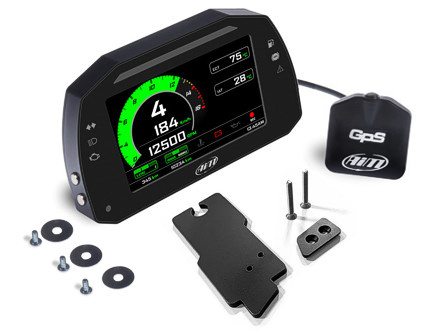

IN THE BOX
XA2MXS12A05R0KN1 MXK10-Gen4 dash logger with screws and washers, dedicated GPS Module "Roof" version
with anodized plate fixing kit and screws
