EVO4
Technical specs      Sw/Fw download      Documentation     Installation      Accessories      Pictures
Technical specifications

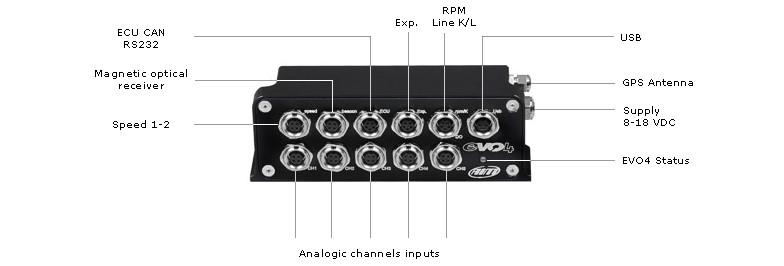

EVO4 connections

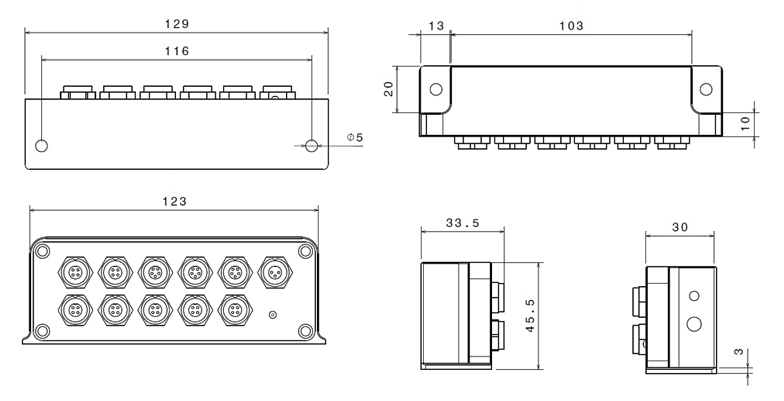

Disegno tecnico EVO4
Technical characteristics
System dimensions 129x45.5x30 mm
Weight 240 g
Chassis Aluminum
Waterproof IP67
Power supply 9-15 V
Integrated GPS Yes
Integrated triaxial accelerometer Yes
ECU connection (CAN, RS232, K Line) Yes
CAN protocol for external expansion modules Yes
Analogic channels 5
RPM channels 1
Speed channels 2
Laptimer input Yes (optical and magnetic)
Sampling frequency (max) 5 KHz
Memory 16 MB
USB Data download Yes
In the box
EVO4, 1 GPS antenna (different lengths), 1 receiver with cable, 1 transmitter, 1 transmitter source cable, 1 USB cable, 1 RPM cable, 1 serial+CAN cable, Race Studio 2 software.
