AiM ECU Taipan
Compatible models |
Bike models |
Brand |
Type |
Race |
From Year |
To Year |
|
GASGAS |
MC 250F |
Cross |
2021 |
2024 |
MC 450F |
Cross |
2021 |
2024 |
EC 250F |
Enduro |
2021 |
2023 |
EC 350F |
Enduro |
2021 |
2023 |
|
HONDA |
CRF 250R |
Cross |
2019 |
2024 |
CRF 450R |
Cross |
2019 |
2025 |
CRF 450L |
Enduro |
2021 |
2023 |
CRF 450X |
Enduro |
2021 |
2023 |
|
HUSQVARNA |
FC 250 |
Cross |
2019 |
2024 |
FC 350 |
Cross |
2019 |
2024 |
FC 450 |
Enduro |
2019 |
2024 |
FE 250 |
Enduro |
2020 |
2023 |
FE 350 |
Enduro |
2020 |
2023 |
FE 450 |
Enduro |
2020 |
2025 |
FE 501 |
Enduro |
2020 |
2025 |
FS 450 |
Supermoto |
2019 |
2024 |
|
KAWASAKI |
KX 250 |
Cross |
2022 |
2023 |
KX 450 |
Cross |
2019 |
2023 |
| |
|
|
|
| |
|
|
|
|
KTM |
SX-F 250 |
Cross |
2019 |
2024 |
SX-F 350 |
Cross |
2019 |
2024 |
SX-F 450 |
Enduro |
2019 |
2024 |
EXC-F 250 |
Enduro |
2020 |
2023 |
EXC-F 350 |
Enduro |
2020 |
2023 |
EXC-F 450 |
Enduro |
2020 |
2025 |
EXC-F 500 |
Enduro |
2020 |
2025 |
SMR 450 |
Supermoto |
2019 |
2024 |
|
| Additional characteristics to the stock ECU: |
| Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground |
| Second injector driver for high impedance saturated injectors (12 Ohm) |
| 1 low side driver (1A) |
2 busses, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash etc.) |
| Power consumption 150 mA |
| Connectors |
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 JST 04R-JWPF-VSLE-S Connector
1 33 pin male Connector |
| Body |
PA6 + 30% glass fiber |
| Dimensions |
89.4x75.4x29.3 mm |
| Weight |
260 g |
| Waterproof |
IP67 |
|
|
| TAIPAN Y |
|
|
|
|
| TAIPAN Y TECH SPECS |
|
AiM ECU Taipan Y
Compatible models |
Bike models |
Brand |
Type |
Race |
From Year |
To Year |
|
YAMAHA |
YZ 250 F |
Cross |
2019 |
2023 |
YZ 450 F |
Cross |
2019 |
2022 |
| |
|
|
|
| |
|
|
|
|
| Additional characteristics to the stock ECU: |
| Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground |
| Second injector driver for high impedance saturated injectors (12 Ohm) |
| 1 low side driver (1A) |
2 CAN busses, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash etc.) |
| Power consumption 150 mA |
| Connectors |
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 JST 04R-JWPF-VSLE-S Connector
1 33 pin male Connector |
| Body |
PA6 + 30% glass fiber |
| Dimensions |
73.9x95.1x30.4 mm |
| Weight |
230 g |
| Waterproof |
IP67 |
|
|
| TAIPAN Y V2 |
|
|
|
|
| TAIPAN Y V2 TECH SPECS |
|
AiM ECU Taipan Y v2
Compatible models |
Bike models |
Brand |
Type |
Race |
From Year |
To Year |
|
YAMAHA |
YZ 250 F |
Cross |
2024
|
YZ 450 F |
Cross |
2023 |
2024 |
| |
|
|
|
| |
|
|
|
|
| Additional characteristics to the stock ECU: |
| Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground |
| Second injector driver for high impedance saturated injectors (12 Ohm) |
| 1 low side driver (1A) |
| 1 CAN bus for calibration purposes |
| 2 JST JWPF waterproof auxiliary connectors |
| Power consumption 150 mA |
| Connectors |
1 JST 04T-JWPF-VSLE-S Connector
1 JST 08R-JWPF-VSLE-D Connector
1 39 pin male Connector |
| Body |
PA6 + 30% glass fiber |
| Dimensions |
64.5x59x29.5 mm |
| Weight |
150 g approx |
| Waterproof |
IP67 |
|
|
| TAIPAN K |
|
|
|
|
| TAIPAN K TECH SPECS |
|
AiM ECU Taipan K
Compatible models |
Bike models |
Brand |
Type |
Race |
From Year |
To Year |
|
KTM |
SX 125 |
Cross |
2024 |
2025 |
SX 250 |
Cross |
2024
|
| |
|
|
|
| |
|
|
|
|
HUSQVARNA |
TC 125 |
Cross |
2024 |
2025 |
TC 250 |
Cross |
2024
|
| |
|
|
|
| |
|
|
|
|
GASGAS |
MC 125 |
Cross |
2024 |
2025 |
MC 250 |
Cross |
2024
|
| |
|
|
|
| |
|
|
|
|
| Additional characteristics to the stock ECU: |
| Two 0-5V analog inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground |
| 1 low side driver (1A) |
| 1 CAN bus for calibration purposes |
| IMU |
| Pitch/Roll |
| Power consumption 150 mA |
| Connectors |
1 JST 04T-JWPF-VSLE-S connector
1 JST 08R-JWPF-VSLE-D connector
1 64 pins male connector |
| Body |
PA6 + 30% glass fiber + EPDM cover |
| Dimensions |
112x100x40.8 mm |
| Weight |
390 g approx |
| Waterproof |
IP67 |
|
|
| HANDLE BAR SWITCH |
|
|
|

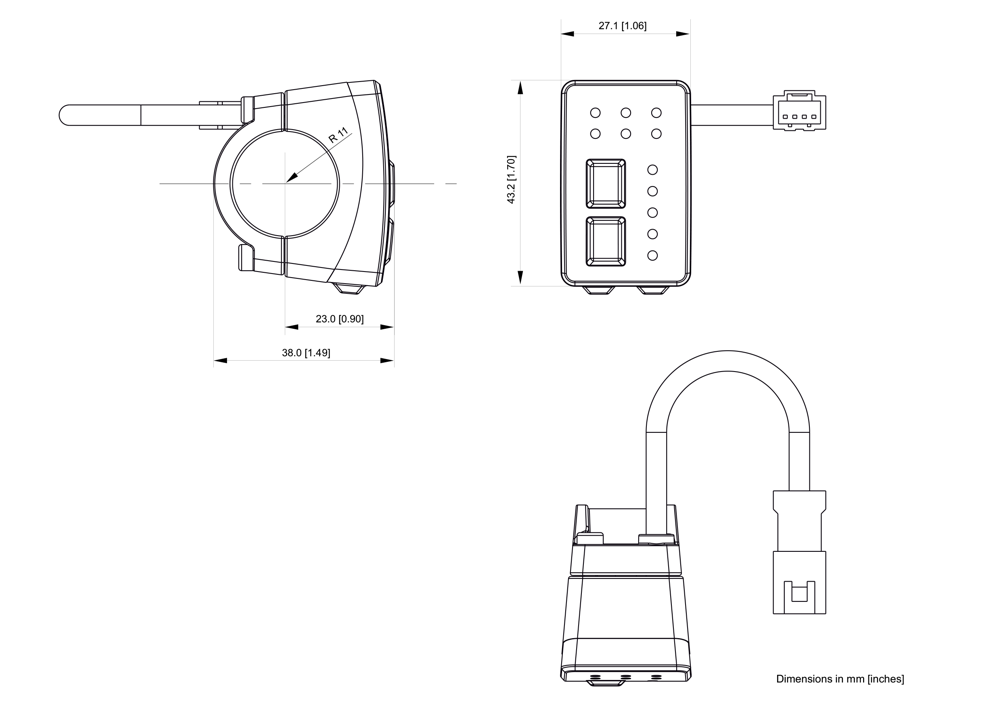

| HANDLE BAR SWITCH TECH SPECS |

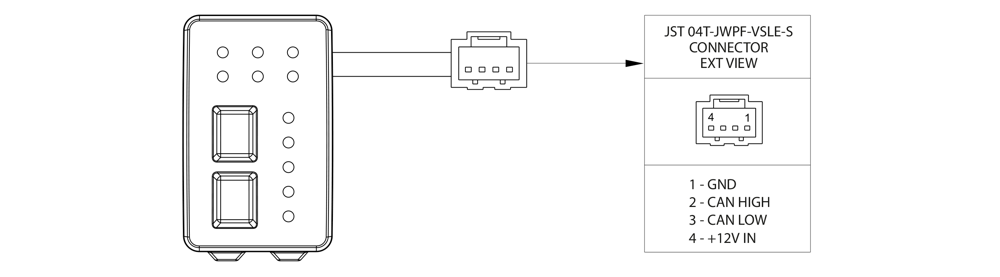

| JST waterproof connector for CAN Bus communication |
| Connector |
1 JST 04T-JWPF-VSLE-S Connector |
| Body |
PA6 + 30% glass fiber |
| Dimensions |
47.3x24.9x48.1 mm |
| Waterproof |
IP67 |
| Weight |
70 g |
|
|
| UC BRIDGE |
|
|
|
|
| UC BRIDGE TECH SPECS |
| Connectors |
1 USB connection for PC
1 JST 04R-JWPF-VSLE-S waterproof Connector for CAN Bus communication |
| Body |
PA6 + 30% glass fiber |
| Dimensions |
103.5x45.3x18.1 mm |
| Waterproof |
IP65 |
| Weight |
80 g |
|
|
