MX LCD Series |
|
The compact and easy-to-use LCD Dash Loggers for Motorsport |
|
|
|
| Display resolution |
|
268 x 128 pixels |
| Backlight |
|
7 configurable RGB colors |
| Ambient light sensor |
|
Yes |
| Shift Lights |
|
5 configurable RGB LEDs |
| Alarm LEDs |
|
2 configurable RGB LEDs |
| CAN connection |
|
2 |
| ECU connection |
|
CAN, K-Line, RS232 |
| Inertial platform |
|
Internal 3 axis ±5G accelerometer + 3 axis gyro |
| GPS |
|
Integrated |
| External modules |
|
Lambda Controller, ACC3, GPS09c, SmartyCam 3 |
| Analog inputs |
|
4 fully configurable, max 500 Hz each |
|
1 fully configurable, max 500 Hz |
| Digital inputs |
|
2 speed inputs
Low level coil RPM input, 0-5 V square wave |
|
Low level coil RPM input,
0-5 V square wave |
| Digital outputs |
|
2 high-side |
|
-- |
| Wi-Fi connection |
|
Yes |
| Internal memory |
|
4 GB |
| Body |
|
PA6 30% glass |
| Pushbuttons |
|
Metallic |
| Connectors |
|
37 pins Motorsport + 4 pins power connector |
|
3 Binder connectors |
| Dimensions |
|
137.0 x 88.4 x 31.9 mm |
| Weight |
|
330 g |
| Waterproof |
|
IP65 |
|
|
MXm and MXq are the entry level dash loggers which provide all the info needed by racers: they sample and show key info like speed, laptimes, RPM, gears, it has multiple math channels and much more.
Their strengths are the compactness, which makes the two devices perfect to be fit into any kind of car and bike, and their plug-and-play usage: complete but simple, MXm and MXq are the perfect devices for both Pro and Amateaur racers. |
|
| MXm VS MXq |
|
The two devices share most of the features. They differ only in the number of analog inputs - fully configurable for both - and digital inputs/outputs. |
|
| A WIDE RANGE OF DATA SOURCES |
|
Both devices sample data coming from your ECU, the internal GPS and predefined math channels.
MXm features 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 low level coil RPM input, 0-5 V square wave) and 1 digital output (2 high-side).
MXq has 1 fully configurable analog input and 1 digital input (1 low level coil RPM input, 0-5 V square wave). It does not have digital outputs. |
|
Click the icons and learn more:
|
|
|
|
|
|
|
|
|

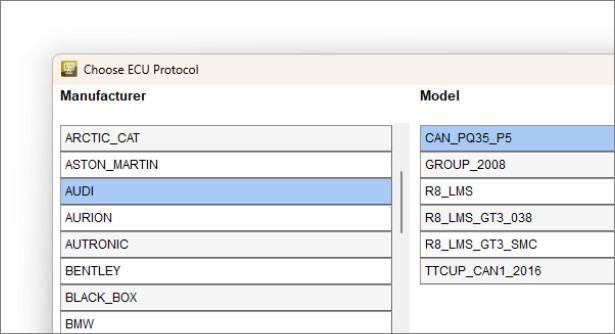

CAN, K-LINE AND RS232 ECU CONNECTION |
|
|
|
|
MXm and MXq manage CAN, K-Line and RS232 ECU communication lines and its huge database includes
more than 2,000 ECU protocols. |
|
|
|
|
 |
|
|
|
|
|
|

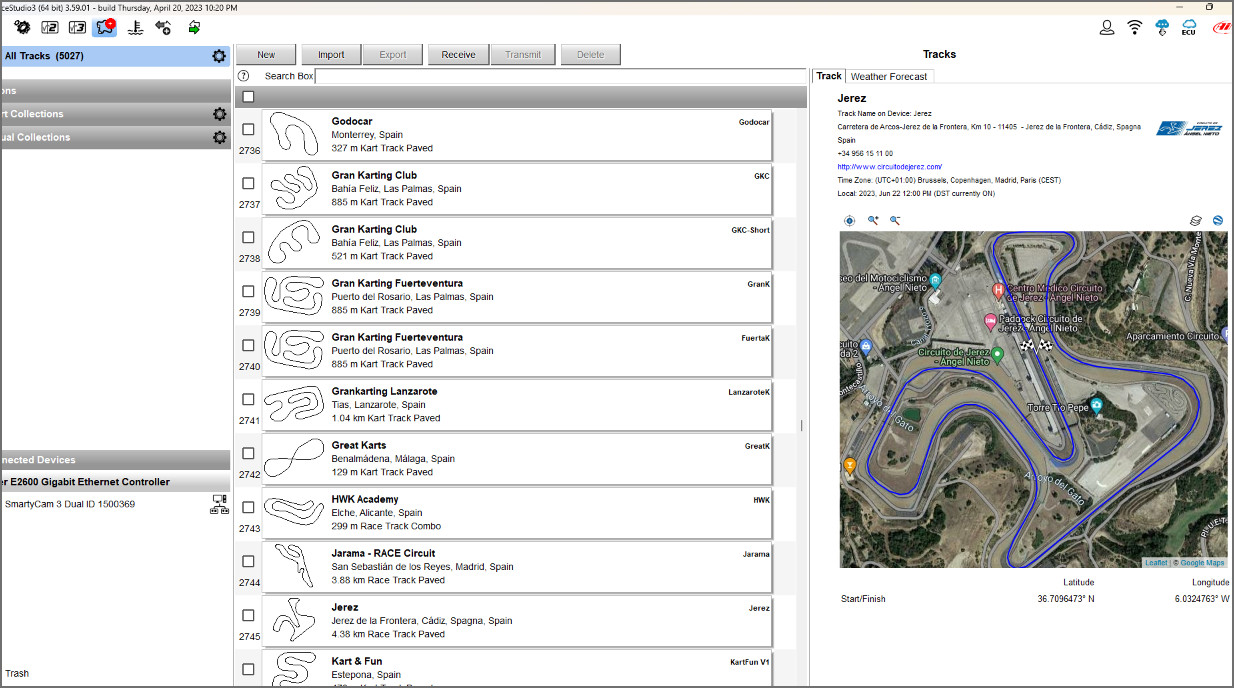

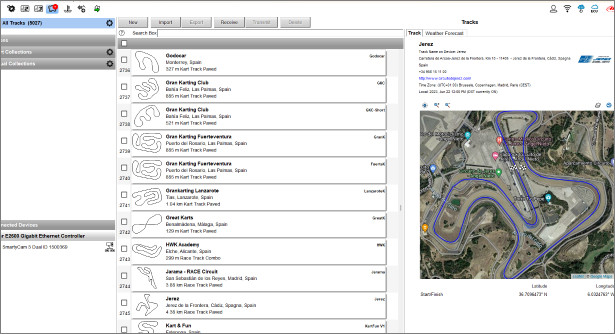

With more than 4,000 tracks in database, the integrated GPS recognizes the track you are racing on and automatically starts sampling lap times.
Thanks to Track Manager function of RaceStudio 3, tracks can be created, deleted and modified, transmitted and received to/from MXm/MXq. |
|
|
|
|
 |
|
|
|
|
|
|
MXm/MXq calculate lap times and record data, track name and time of the test making your life easier when you analyze your data.
In case the track is not in the database, no problem: the dash loggers automatically understand the characteristics of the track and give the lap time anyway. |
|

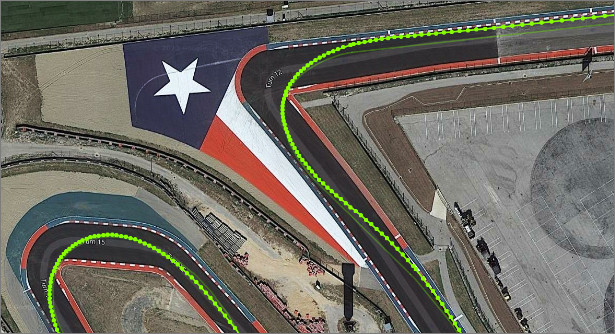

| POSITION AND SPEED ON TRACK |
|
| Thanks to the four constellations that MXm/MXq manage, the precision is generally under the 0.5 m and sampled 25 times per second. |
|
|
 |
|
|
|

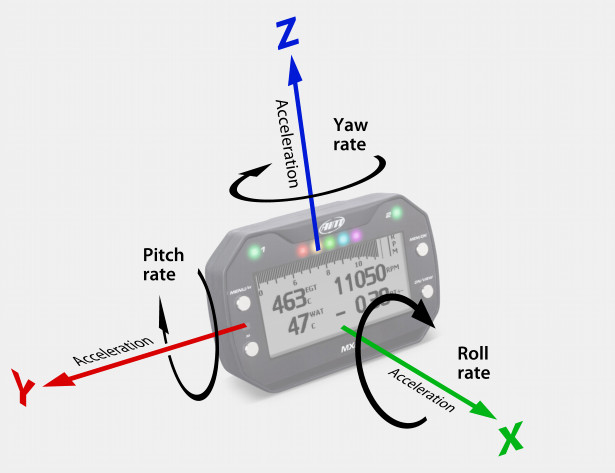

| INERTIAL PLATFORM |
|
| 3D accelerations and gyro - the inertial platform at 100 Hz - gives the possibility to calculate roll, pitch and yaw. |
|
|
 |
|
|
|
|
|
INTEGRATED SHIFT LIGHTS AND ALARMS |
|
|
|
MXm and MXq feature a 5 LED shift light array.
Choose from a host of advanced multicolored RGB
shift light patterns that can be customized
to your liking, and for each unique gear when required. |
|
The devices also feature two fully configurable RGB
alarm LEDs: you can choose the conditions
which turn them on/off, their color,
select a solid alarm - or flashing one -
and the flashing frequency. |
|
|
|
|
|
|
|
|
| TWO POWER OUTPUTS FOR MXM |
|
MXm features two power outputs
that can drain up to 15 A each.
The two power outputs can be configured in order
to be turned on/off depending on the value
of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights,
to activate/de-activate a cooling fan
or circulation pumps, etc. when
a certain event happens. |
|
|
|
|
|

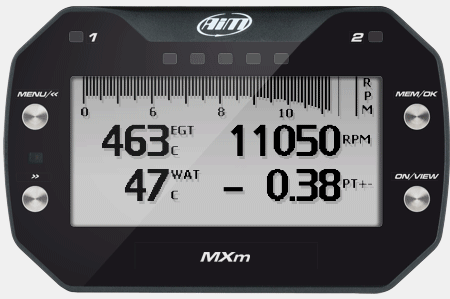

SHARP LIQUID CRYSTAL |
|
MXm and MXq feature a high contrast LCD display, with an outstanding black to white ratio.
The wide 268x128 pixels graphical LCD offers great
flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels. |
|
|
|
The screen can be backlighted in one of the
seven available colors: |
|
|
|
|
|
|
|
|
|
|
DATA RECALL ON SCREEN |
|
At the end of each session,
you can recall the summary of your best laps,
with max/min RPM, speed and temperatures. |
|
CHOOSE YOUR OWN DATA LAYOUT |
|
You can organize this huge quantity of data
defining your custom pages, choosing among
a wide library of page styles, defining which
data to be shown, their end of scale and
measure unit. |
|
|
|
|
|
|
|
|
|
Makes it even more convenient
to configure, calibrate, and download your data
wirelessly, using a secure 802.11 WiFi
connection: no need to move your PC close
to the vehicle anymore, you can do it
from your van up to 50 meters away.
|
|
|
|
|
|
|
|

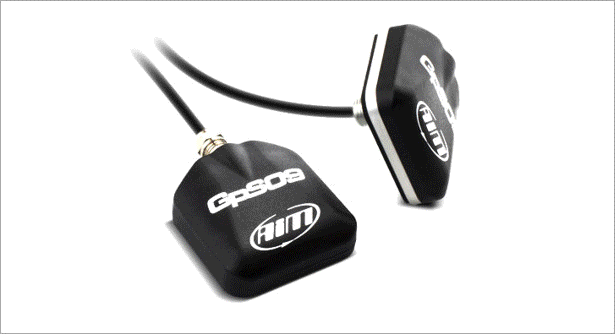

| MXm and MXq can be connected to a lot of AiM expansions like GPS09c, ACC3 and LCU1S to get the best from your engine and - with AiM SmartyCam 3 family - to see your track performances on your PC with all the values you need in overlay. |
|
|
|
|
 |
|
|
|
|
|
|
RaceStudio 3 is the heart of MXm and MXq,
managing
all
your activities related to: |
|
| CONFIGURATION |
|
With RaceStudio 3 you can create, modify, delete, import
and export configurations of: |
|
 |
All channels |
|
|
ECU drivers |
|
|
Math channels |
|
|
Display pages |
|
|
Digital outputs |
|
|
Alarms |
|
|
Shift lights |
|
|
Expansions |
|
|
|
 |
|
|

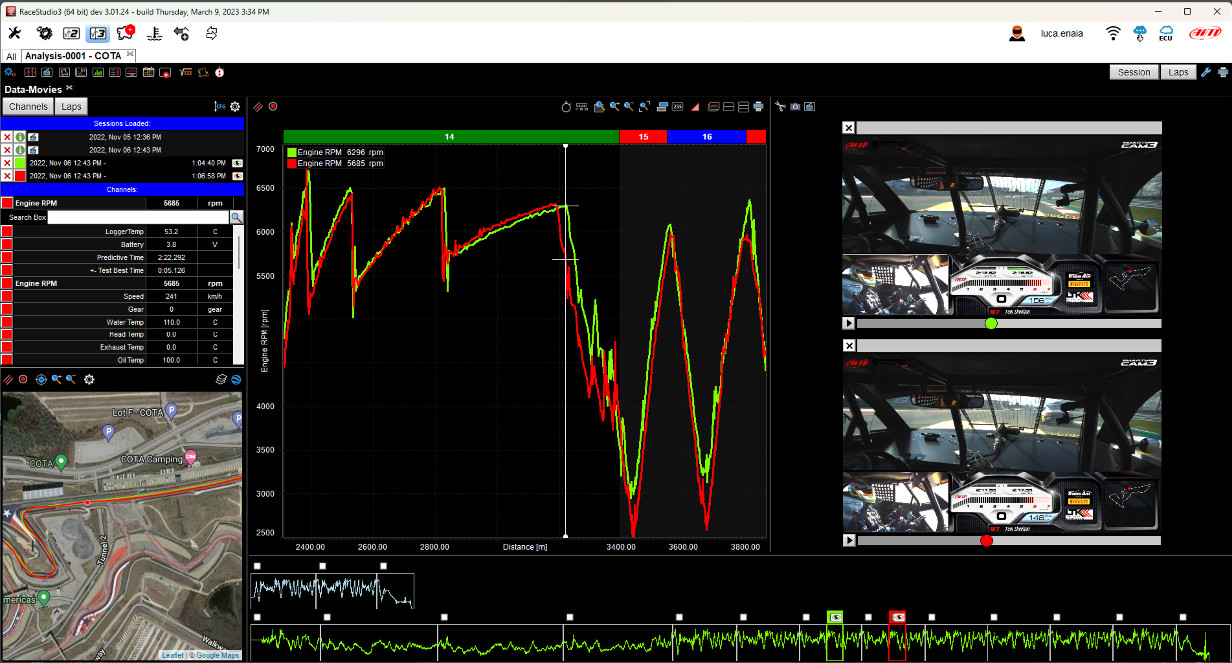

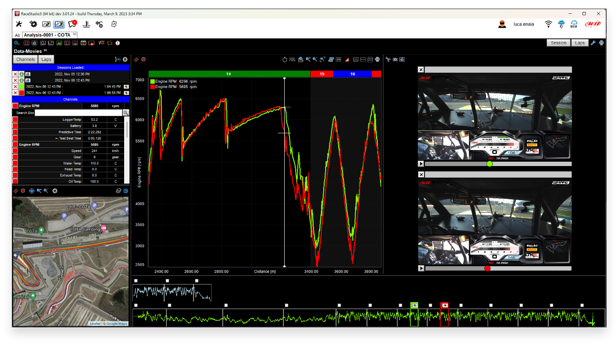

| ANALYSIS |
|
In RaceStudio 3 you can also analyze all data recorded by MXm and MXq and downloaded to your PC.
Graphs, histograms and tables will help you studying your performance, providing an objective support to avoid mistakes and improve your performance as well as tuning the engine and adjust the setup of your vehicle.
You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam 3 cameras. |
|
|
|
|
|
|
|
|
|
|
|
Since 2020 our teacher Roger Caddell holds informative webinars and creates tutorials.
AiM Sports LearnFast™ webinars on AiM Sports YouTube channel are completely dedicated to helping you understand data and/or video system and to support you using AiM software.
With tons of tutorials available you will be better equipped to start using data in order to achieve your racing goals. |
|
|
|
|
 |
|
|
|
|
