| TECHNICAL SPECIFICATIONS |
|
|
|
| Display |
6” TFT |
| Resolution |
800x480 pixels |
| Contrast |
600:1 |
| Brightness |
700cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Integrated buttons in cluster |
4 |
| Status information LEDs |
6 |
| Shift lights LEDs |
10 |
| Turn indicators |
2 |
| CAN connections |
2 |
| ECU connections |
Yes |
| External modules |
GPS, Channel Expansion,
Lambda Controller, SmartyCam 3 Series |
| Wi-Fi connection |
Yes |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |

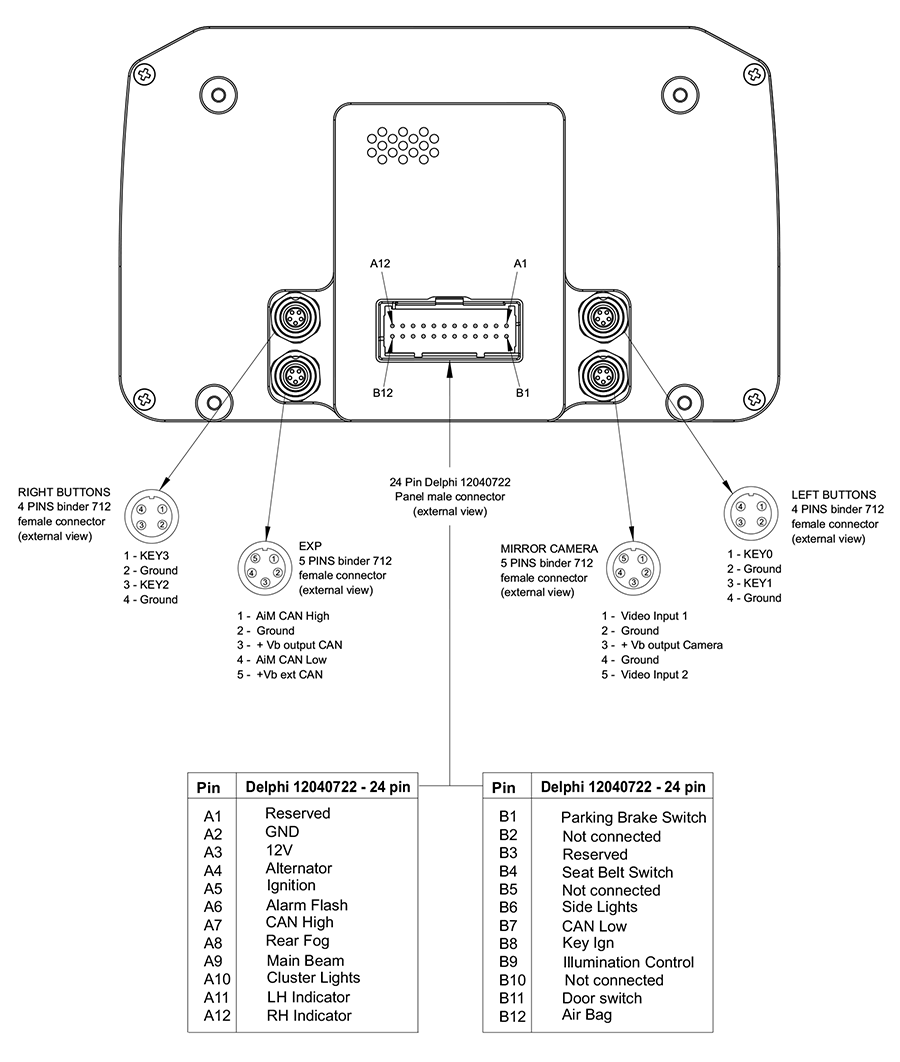

| Connectors |
1 Delphi 12040722 connector + 4 Binder 712 connectors |
| Power consumption |
400 mA |

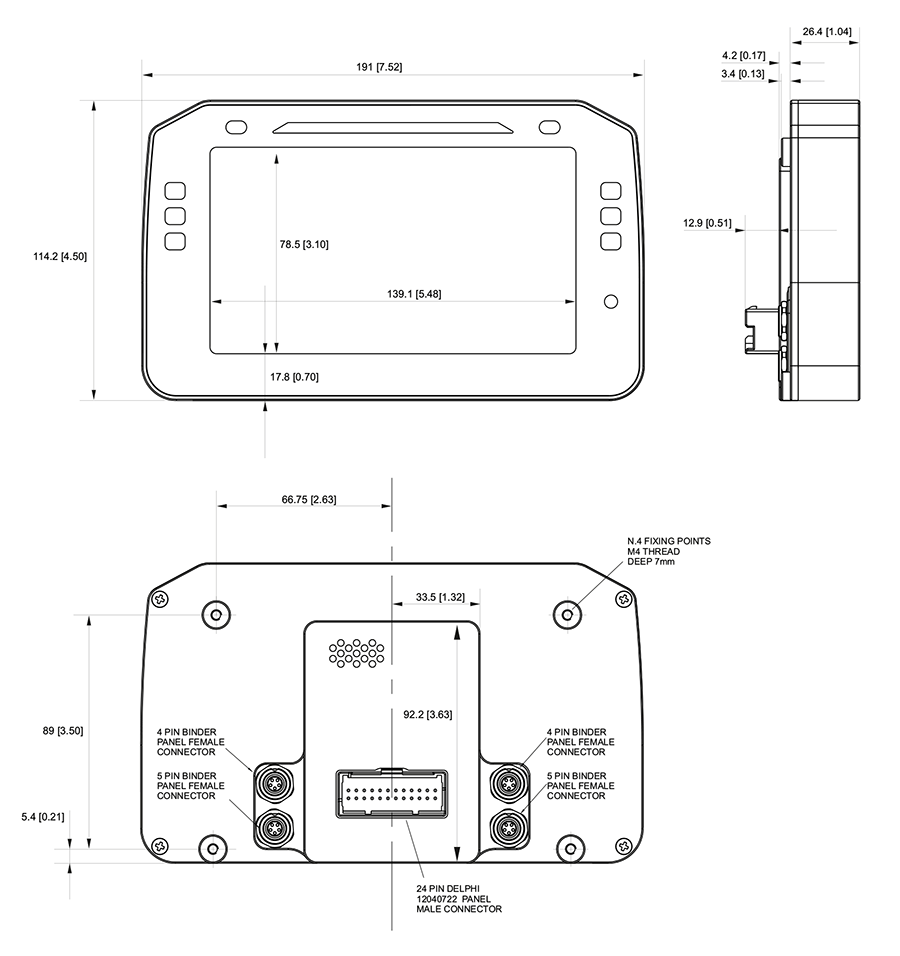

| Dimensions |
191 x 114,2 x 26,4 mm |
| Weight |
400 g |
| Waterproof |
IP65 |
|
|
|
|

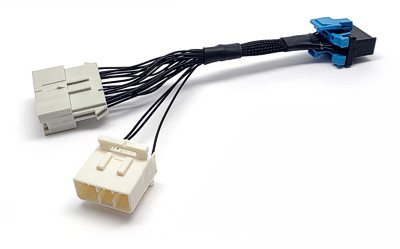

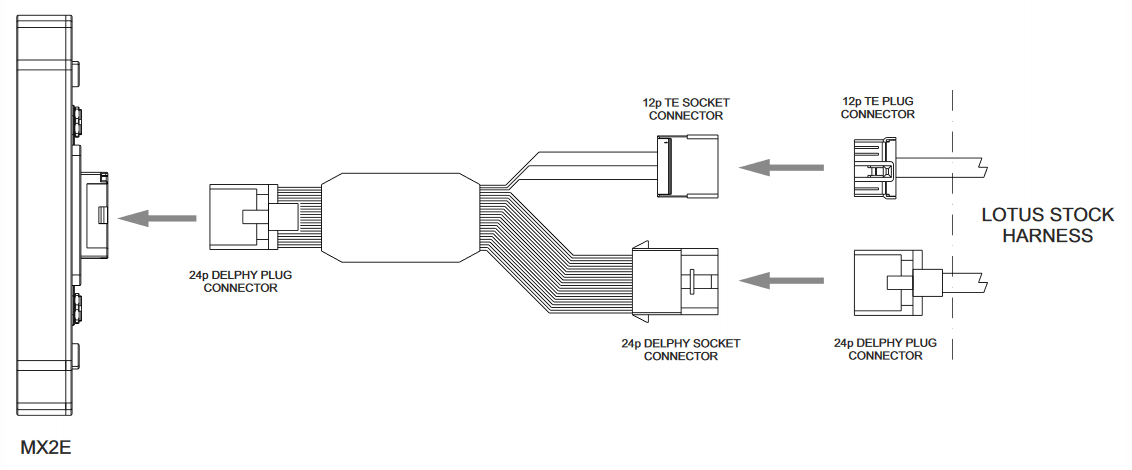

| ADAPTER HARNESS |
|
| for Lotus Elise/Exige model years 2004-2007 (version with airbag only) |
|
 |
|
 |
|
| V02593010 |
Adapter harness |
|
|

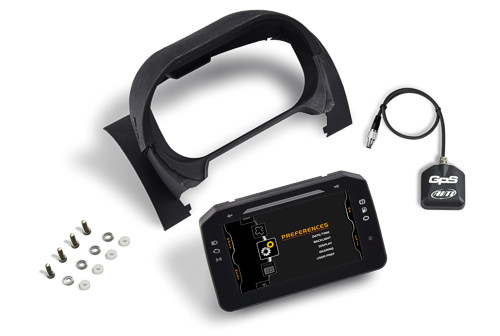

| IN THE BOX |
|
 |
|
| XA6MXPLEE2 |
MX2E dash logger with cluster, dedicated GPS Module, screws and washers. |
|
|
|
|
|
