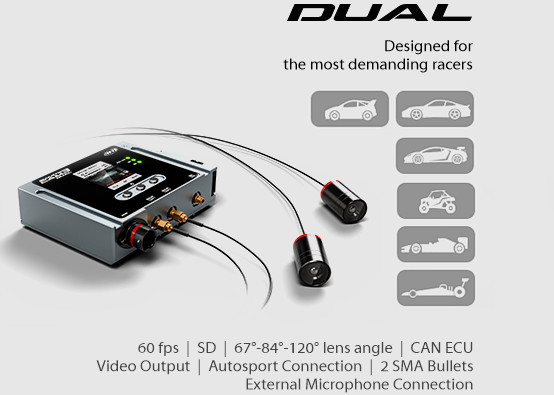

SmartyCam 3 Dual
The ultimate motorsport camera
by AiM with two bullet cams
IF ONE IS GREAT, DUAL IS BETTER
SmartyCam 3 Dual is the flagship version of SmartyCam 3 range, designed for any racer who wants to get the most out from any performance video on the track.
Dual Full HD camera system, Video output, CAN connection, USB-C connection, Ethernet port are only few of the features of SmartyCam 3 Dual: the most powerful of our range.
FULL HD 60 FPS  |  GLOBAL SHUTTER CMOS SENSOR  |  INTERNAL DATALOGGER
VIDEO OUTPUT  |  CAN CONNECTION  |  TWO BULLET CAMS
HIGHLIGHTS

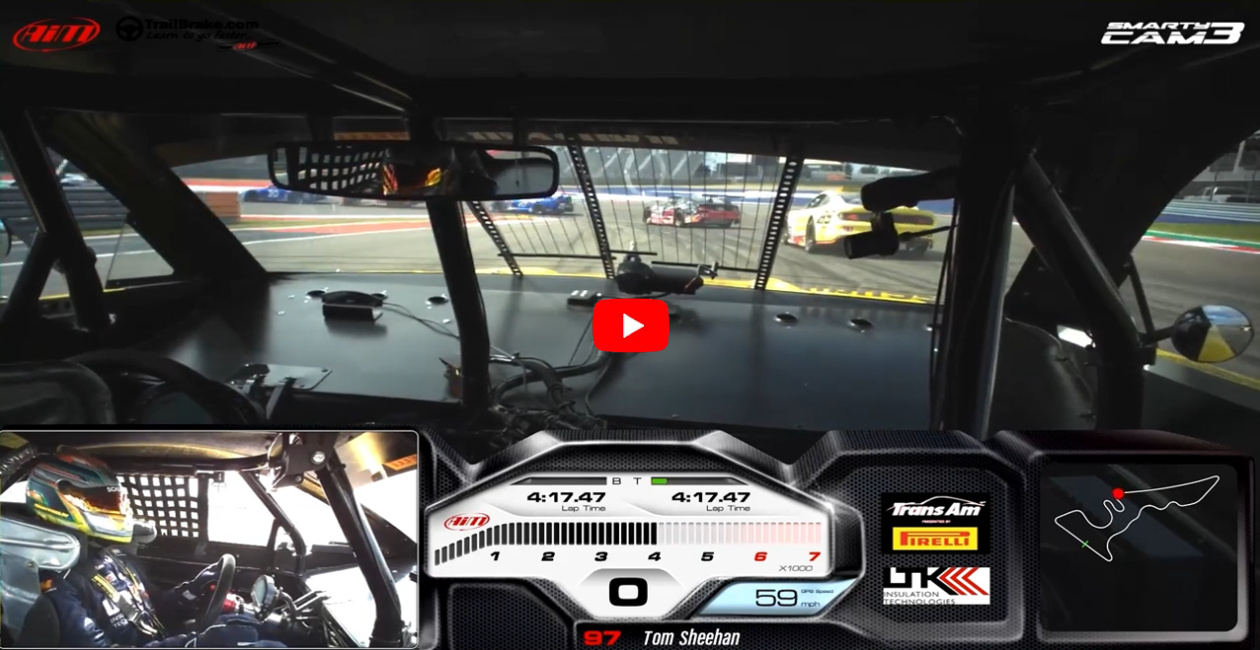

CONFIGURABLE OVERLAYS
The new SmartyCam 3 Dual has been designed for motorsport with a single purpose:
PROVIDING GREAT VIDEOS INCLUDING ALL INFORMATION YOU NEED
SmartyCam 3 Dual overlays all data from both GPS and AiM loggers connected to your ECU
.

Video output
SmartyCam 3 Dual features a video output
with SDI interface.
It allows to send the video/audio stream
to a streamer at 30 or 60 fps to perform
a video streaming.
RS3 WITH ANALYSIS 3, THE ALMIGHTY SOFTWARES BEHIND AIM PRODUCTS
SC3 CONFIGURATION
With Race Studio 3 software you can configure your overlays in a virtually infinite variety of ways: add your logo and the track map and choose your graphic objects from a list of pre-determined sets with same layout or even single objects from different sets; add the second camera video in Picture in Picture mode. This way your videos will be truly "yours.
VIDEO ANALYSIS WITH ANALYSIS 3
The video of a whole session, once downloaded on your PC, can now be split - with a simple click - in individual videos of each lap so that you can simultaneously watch two of them and check where you were faster or slower.
The same operation can be performed with a
SmartyCam 3 Dual video recorded on the same track: you will be able to compare your best lap with your friends personal best!
ADDITIONAL FEATURES

Full internal datalogger
Thanks to its second CAN SmartyCam 3 Dual receives and stores in a .mp4 file all data coming from any CAN expansion.
At the end of your test, your SD Card contains all the information you need for a deep data analysis. SD card is sold separately.


Designed for the extreme
An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather conditions.
That's why SmartyCam 3 Dual and his bullet cams are made in anodized aluminum and IP65 waterproof.


Automatic Start & Stop
You have other things to think about while you are racing and SmartyCam 3 is aware of that.
That is why it switches on/off automatically and starts/stops recording in the same way.


No "Wave Effect"
with Global Shutter CMOS
Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM.
SmartyCam 3 cameras have been designed for that environment and for those vibrations.
“Wave effect” is just a distant memory.


High quality
with small size video files
Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other Full HD cameras but their files are smaller thanks to the H.264 compression system parameters that is optimized to perfectly balance video quality and file size.
