| TECHNICAL SPECIFICATIONS |
|
| SOLO 2 |
|
|
| SOLO 2 DL |
|
|
| Display |
Graphical |
| Display resolution |
238x99 pixels |
| Display pages |
Up to 5 freely configurable |
| Backlight |
7 configurable RGB colors |
| Shift lights/alarm LEDs |
10 configurable RGB LEDs |
| Integrated track database |
Yes |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro
+ 3 axis magnetometer |
| Wi-Fi connection |
Yes |
| GPS |
25 Hz |
| External power |
9÷15 V |
| Memory |
4 GB |
| Battery type |
Rechargeable Lithium |
| Pushbuttons |
Metallic |
| Dimensions |
98.0x73.7x30.2 mm |
| Weight |
240 g, battery included |
| Waterproof |
IP67 |
| Solo 2 DL |
|
| ECU connection |
CAN, RS232 or K-Line to 1,000 + industry leading ECUs |
|
| |
|

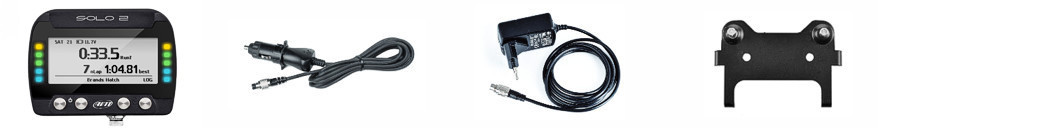

| IN THE BOX OF SOLO 2 & SOLO 2 DL |
|
| Solo 2: |
|
 |
|
Solo 2, power cable with car lighter socket, power cable with AC adapter, mounting bracket with screws, user manual & RaceStudio 3 software freely downloadable from AiM web site, AiM sticker. |
|
|
|
| Solo 2 DL: |
|
|
Solo 2 DL, power cable with AC adapter, mounting bracket with screws, user manual & RaceStudio 3 software freely downloadable from AiM web site, AiM sticker.
|
Concerning the cables you can choose among: |
|
 |
CAN/K-Line/External power cable with OBDII connector |
|
CAN/RS232 external power cable |
|
RPM/External power cable (if your vehicle has no ECU) |
|
|
|
|
| Note: all cables are available in these four versions: Australian, UK, USA and European adaptor. |
|
|
| ACCESSORIES |
|
 |
|

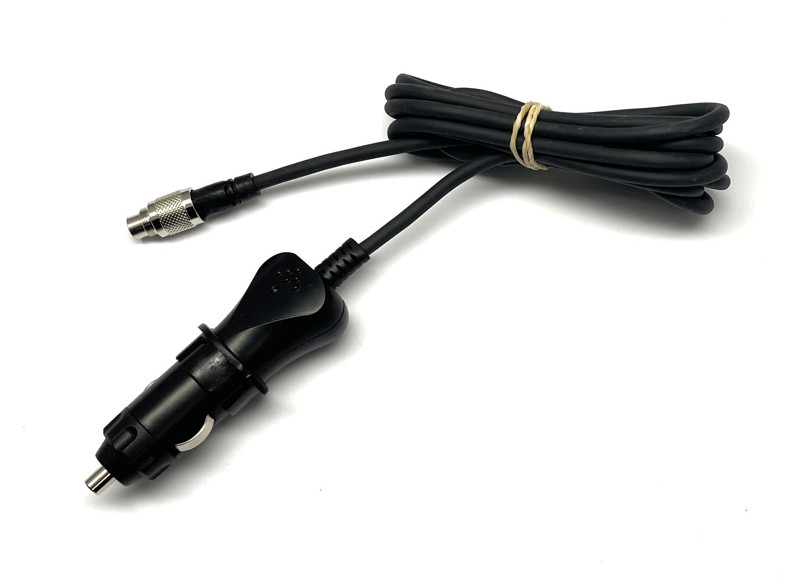

| POWER CABLE WITH WIRED CAR LIGHTER SOCKET |
|
| Part number V02566700 |
|
 |
|
|
|
 |
|

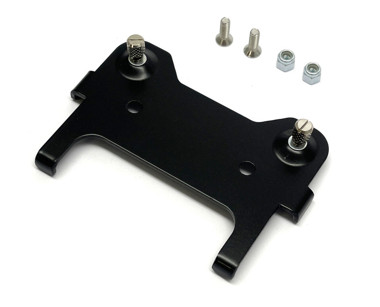

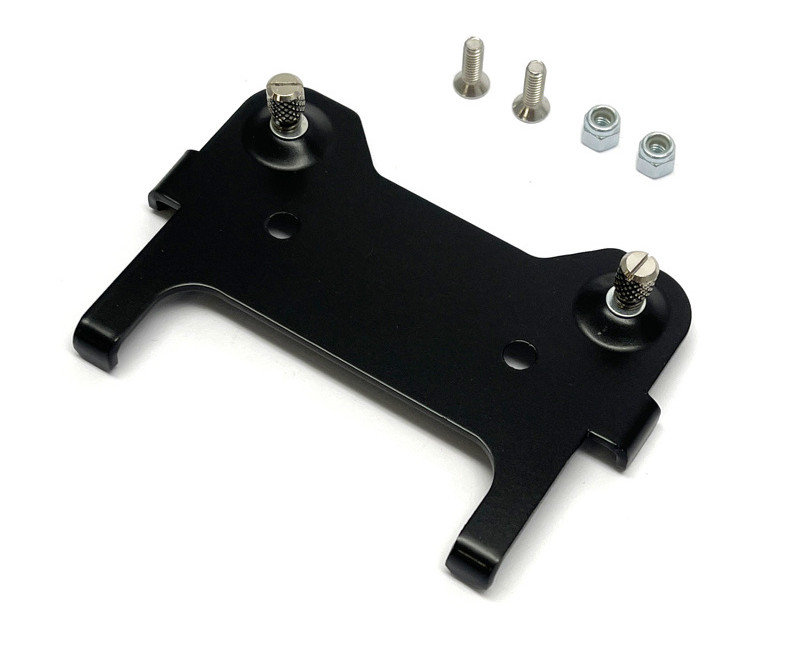

| MOUNTING BRACKET WITH SCREWS |
|
| Part number X47KPFSOLO2R0 |
|
|
|
|
|
 |
|

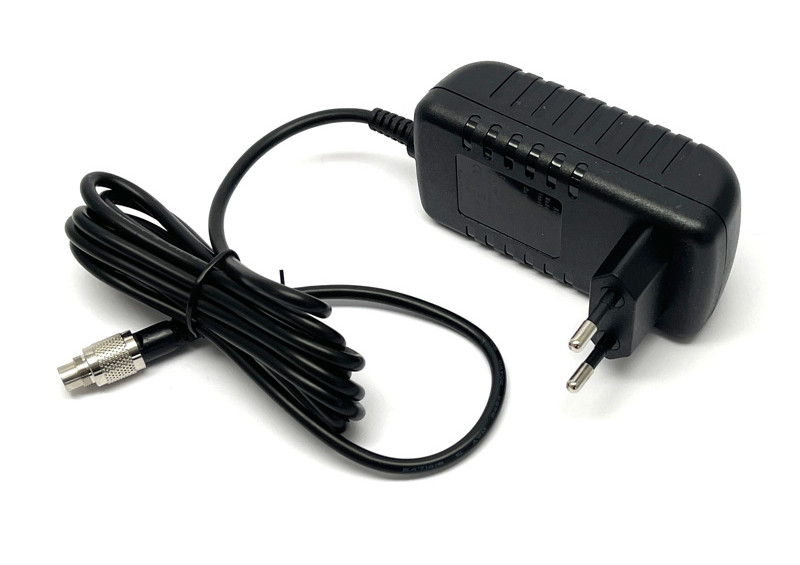

| BATTERY CHARGER 12 V WITH AC ADAPTER |
|
| Part number* X06A12VBM[] |
|
| *AC adapter: substitute [] with E for Europe, G for UK, U for USA, A for Australia. |
|
|
|
|
|
 |
|

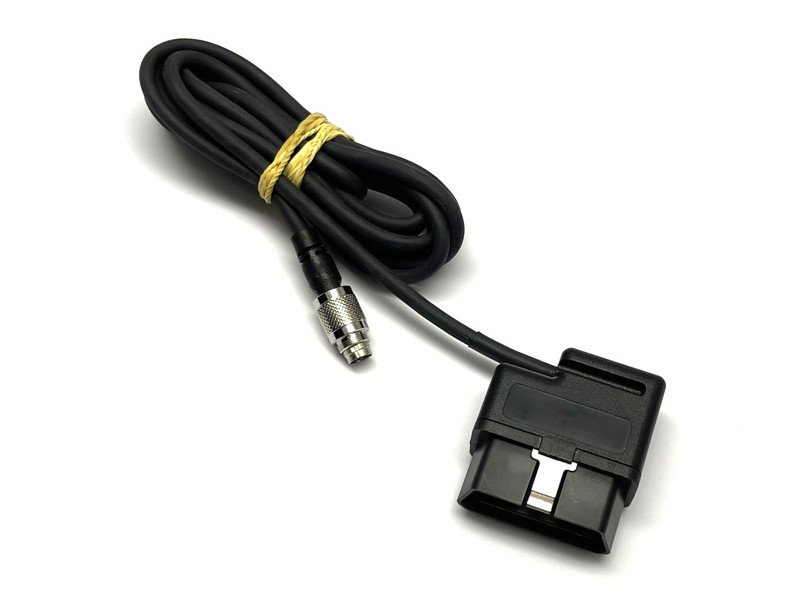

CAN/K-LINE + EXTERNAL POWER CABLE 2 M
WITH OBDII CONNECTOR |
|
| Part number V02589040 |
|
|
|
|
|
 |
|

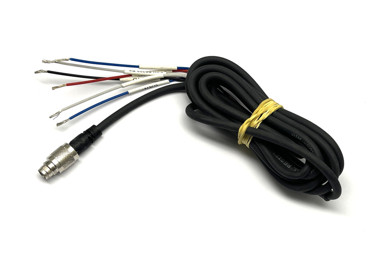

| CAN/RS232 + EXTERNAL POWER CABLE 2 M |
|
| Part number V02589050 |
|
|
|
|
|
 |
|

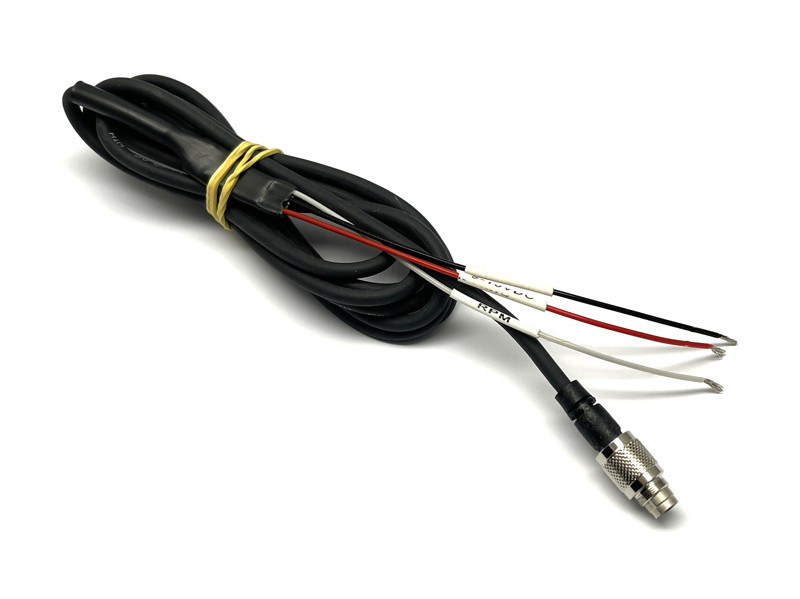

| RPM + EXTERNAL POWER CABLE |
|
| Part number V02589020 |
|
|
|
|
|
| BRACKET KITS |
|
 |
|

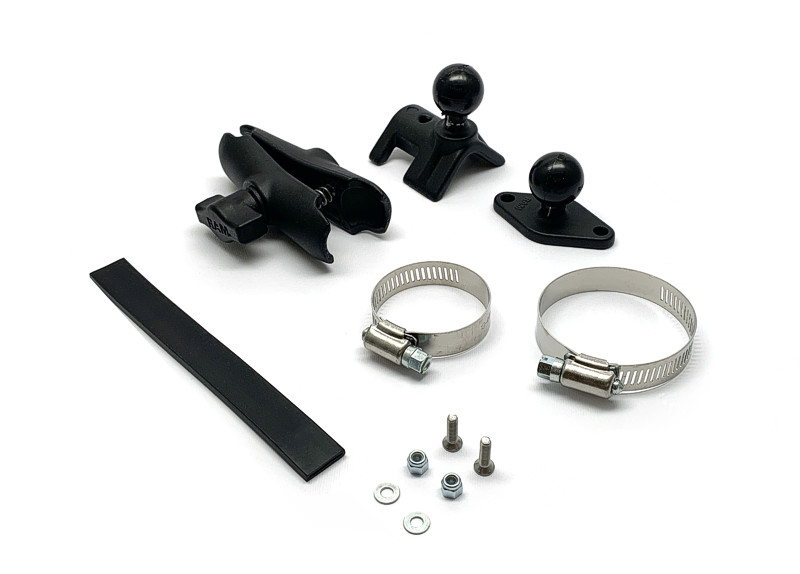

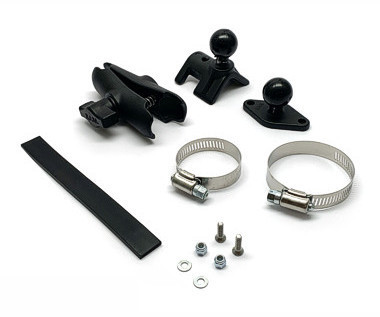

| SUPPORT FOR ROLL-BAR |
|
| Part number X46KSTG00 |
|
The kit contains: 90 mm arm, roll-bar bracket, clamp base with ball, locknut, 4.5 cm and 5.5 cm
tube clamp, gasket, screws and washers. |
|
|
|
|
|
 |
|

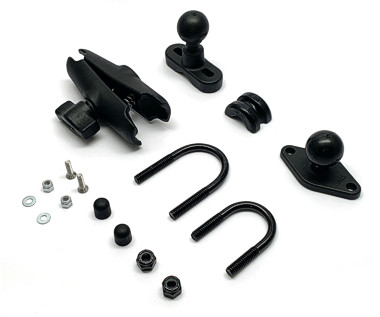

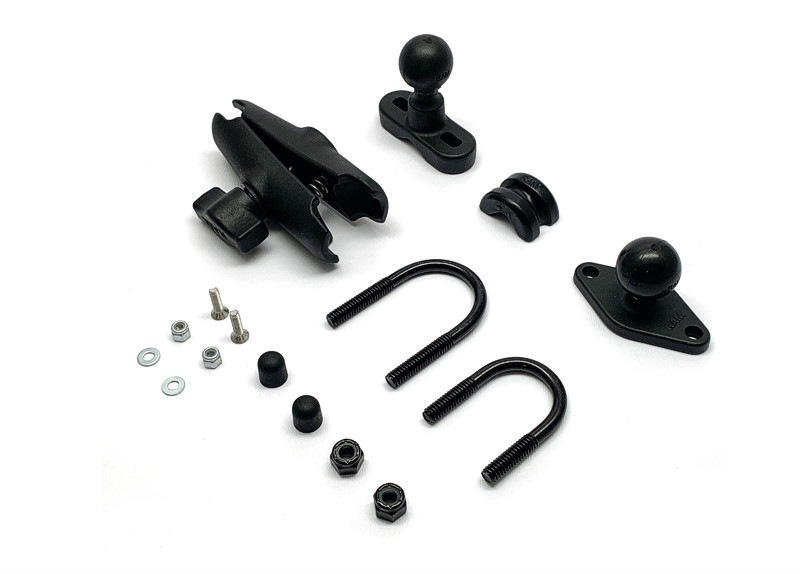

| SUPPORT FOR GENERIC TUBE, max 3 cm diameter |
|
| Part number X46KSTP00 |
|
The kit contains: 90 mm arm, clamp base with ball, 2.5 and 3 cm (diameter) "U" shaped
junctions, locknut, screws and washers. |
|
|
|
|
|
 |
|

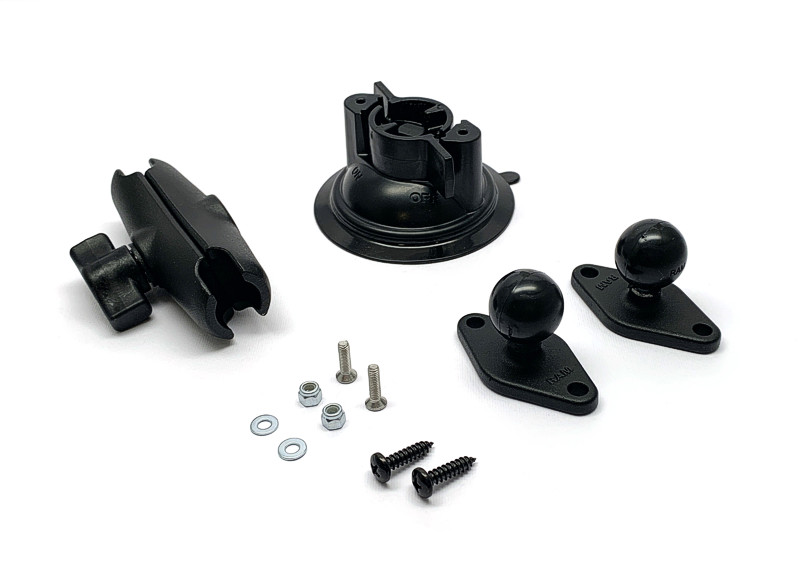

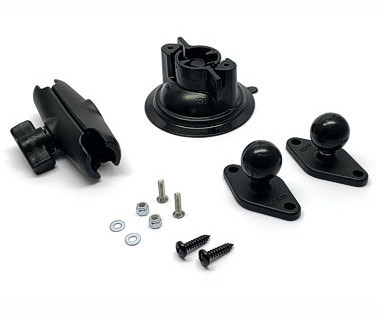

| SUPPORT FOR SUCTION CUP |
|
| Part number X46KSVS00 |
|
| The kit contains: 90 mm arm, suction cup, clamp base with ball, locknut, screws and washers. |
|
|
|
|
|

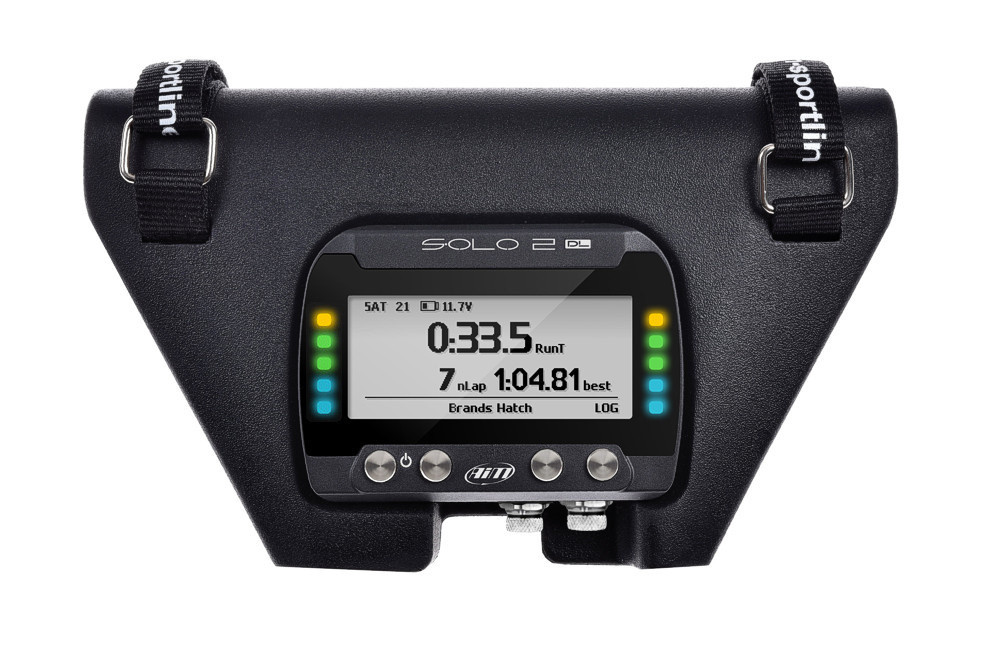

| BAR PADS |
|
| Support for motocross: |
|
 |
|

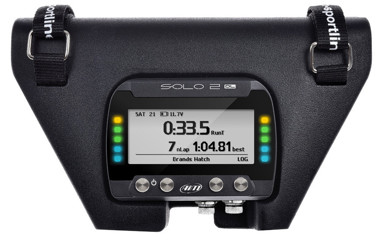

| BAR PAD FOR HANDLE BARS WITH CROSS BRACE |
|
| Part number X47KPSOLO2T20 |
|
| The kit contains: Bar Pad, transparent protection cover, mounting bracket, 4 12 mm M3 screws, installation guide. |
|
|
|
|
|
 |
|

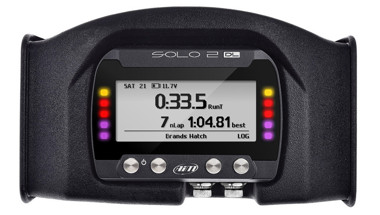

| BAR PAD FOR HANDLE BARS WITHOUT CROSS BRACE |
|
| Part number X47KPSOLO2T10 |
|
| The kit contains: Bar Pad, transparent protection cover, mounting bracket, 4 12 mm M3 screws, installation guide. |
|
|
|
|
|
| DEDICATED KITS FOR OFF ROAD |
|
|
|
|
|
|
|
|
|
|
|
| DEDICATED KITS FOR SPORTS BIKES |
|
|
|
|

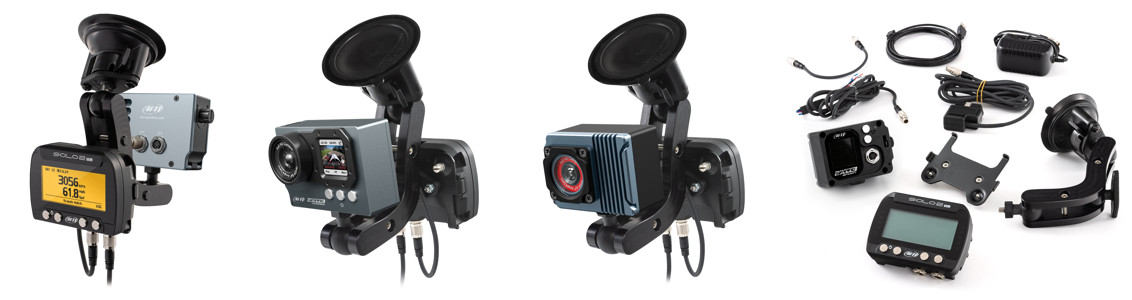

| TRACKDAY KIT |
|
Trackday Kit with double bracket for Smartycam 3 Sport/Corsa and Solo 2 DL, the perfect way to record videos to improve driver and vehicle performance.
Click here to see the assembly instructions (Solo 2 DL and SmartyCam 3 Corsa). |
|
 |
|
| Part numbers: |
|
| XS3CRFHD06722G2DL |
Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL UK |
|
| XS3CRFHD06722U2DL |
Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL USA |
|
| XS3CRFHD06722E2DL |
Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL EU |
|
| XS3CRFHD08422G2DL |
Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL UK |
|
| XS3CRFHD08422U2DL |
Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL USA |
|
| XS3CRFHD08422E2DL |
Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL EU |
|
| XS3S6722G2DL |
Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK |
|
| XS3S6722U2DL |
Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK |
|
| XS3S6722E2DL |
Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK |
|
| XS3S8422G2DL |
Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL UK |
|
| XS3S8422U2DL |
Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL USA |
|
| XS3S8422E2DL |
Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL EU |
|
|
|
|
|
